3-Axis Rad-Hard Gyro















ARIETIS (REAL)-1





Medium to High-Performance 3-Axis Rad-Hard Gyroscope

ARIETIS is an ITAR free, space qualified, rad-hard 3-axis gyroscope. Its main application is as a primary gyro (IRU) or as a coarse rate sensor in Low Earth Orbit (LEO), Medium Earth Orbit (MEO), Geostationary Orbit (GEO), telecom, earth observation and scientific missions. It uses class 1 EEE components and is developed and qualified as per European Space Agency standards (ECSS). ARIETIS has already been selected in multiple missions, notably PLATO, LSTM and ARIEL.

High-Performance Sensor System

ARIETIS is an innovative 3-Axis  Rad-Hard Gyro unit and the only gyroscope system using a European Field-Programmable Gate Array (FPGA) technology. With its High-Reliability class 1 components, ARIETIS is a high-performance, high-reliability, ITAR-free non-redundant 3-axis Gyros Unit, providing inertial angle increments measurement and rotations rates about three orthogonal axes. ARIETIS is developed and qualified as per ESA standard (ECSS) and is also designed to have a long life duration (15+ years).

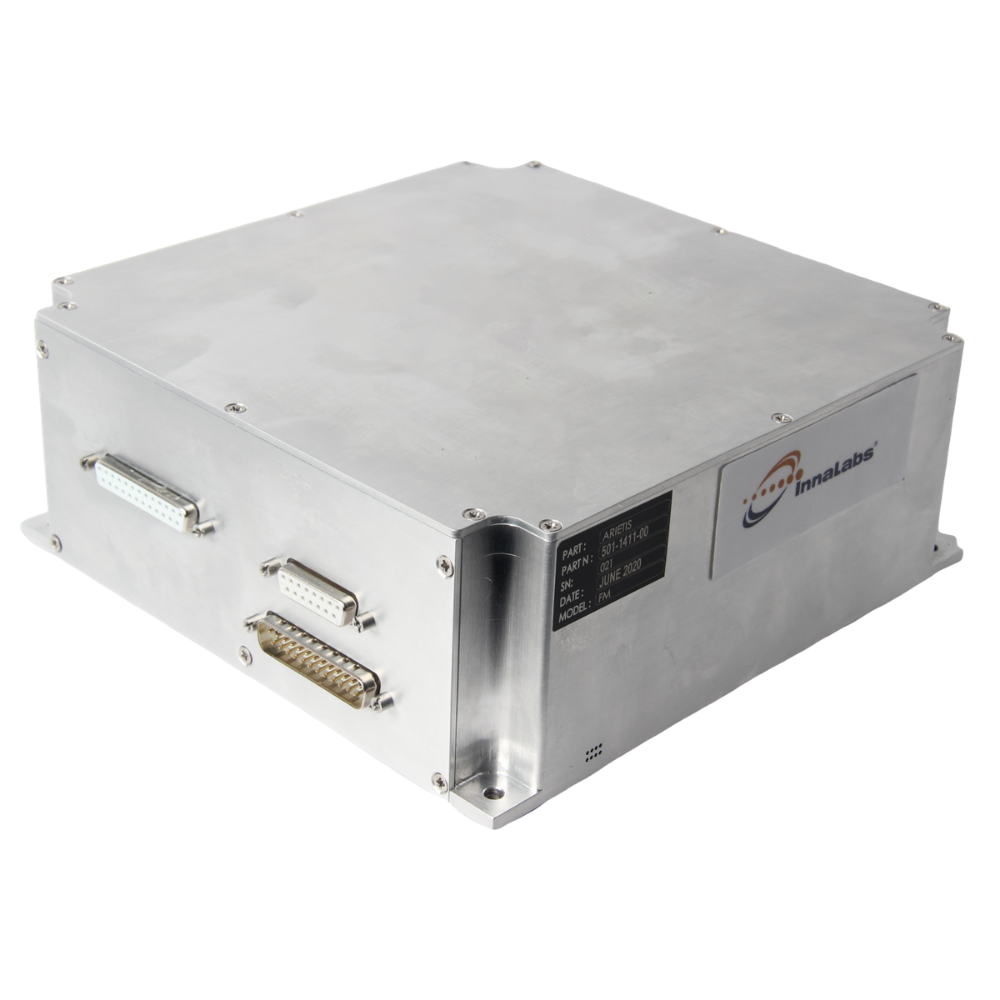

ARIETIS (REAL)

ESA's ARIEL

ESA's Science Mission  ARIEL (Atmospheric Remote-Sensing Infrared Exoplanet Large-survey), a space observatory which will observe transits of nearby exoplanets to determine their chemical composition and physical conditions. Photo by ARIEL Space Mission.



Technology Background

InnaLabs® developed ARIETIS to address coarse rate control and stabilisation in Attitude & Orbit Control Systems (AOCS) in Geostationary Orbit (GEO), Low-Earth Orbit (LEO), and Navigation in Medium-Earth Orbit (MEO). The unit is based on InnaLabs® patented CVG technology which has consistently delivered a market-leading performance to cost ratios for the past six years on land and marine stabilisation platforms.

InnaLabs® (CVG) technology shares common features with the Hemispherical Resonator Gyroscope (HRG) family, however, the CVG technology maintains high reliability and accuracy at a lower cost.

Specifications

Additional product specifications, outline drawings and block diagrams, and test data are available on request.



Performance Parameters
Values
Measurement Range

[-3°/s; +3°/s] fine mode

[-48°/s; +48°/s] coarse mode

Switch-on response time ≤ 6s
ARW ≤ 0.005°/√hr
In-run bias stability ≤ 0.1°/hr
Bias Stability over 24hr (steady temperature) ≤ 1.5°/hr (1σ)
Bias stability over 1hr (steady temperature) ≤ 0.3°/hr (1σ)
Bias errors (over temperature range, ground, BOL) ≤ 5°/hr (3σ)
Scale Factor repeatability errors (all effects, EOL) ≤ 3000ppm (3σ)
Performance Parameters Value
EEE Components Hi-Rel class 1 EEE qualified to 50krad TID / 60MeV SEE
Output  Angle increments

Data Interface

RS422

Optional analogue output

Ground stimulus

Reliability ≤ 500 FIT at 30°C
Mass

~3 kg

Power Consumption  8W
Power Interface

28V (regulated or unregulated) redundant.

Power on and power off command

In-orbit calibration functionalities Yes
Temperature range Qualified to a temperature range of -30°C to +60°C
Vibration profiles during launch 26.2 grms
Lifetime up to 6 years on ground and 16 years in flight



Applications

Its main application is either to be used as a primary gyro or as a coarse rate sensor.

-Geostationary Earth Orbit (GEO)

-Low Earth Orbit (LEO)

-Medium Earth Orbit (MEO)

-Telecommunication Satellites

-Exploration Missions

-Longlife Missions

ESA's Planetary Transits and Oscillations of stars (PLATO)

Photo by European Space Agency.

Space Missions

In December 2016, InnaLabs® won its first contract with the European Space Agency (ESA) to develop ARIETIS, a 3-axis Rad-Hard Rate Measurement Unit for science and space exploration. However, this development also finds applications in the global commercial space market, including GEO, Telecom and Navigation platforms. In particular, ARIETIS is to be used in ESA's third medium-class mission called PLAnetary Transits and Oscillations of stars (PLATO). Its purpose is to discover and investigate a large number of extrasolar planetary systems, with emphasis on the properties of terrestrial planets in the habitable zone around solar-like stars. PLATO has also been designed to investigate seismic activity in stars, enabling the precise characterisation of the planet's host star, including its age.

Additionally, InnaLabs® is currently negotiating with a number of Space Primes for ARIETIS to be used on a variety of missions, including Science, Earth Observation, Telecom, as well as Navigation platforms. First contracts were signed in 2021, with flight models being shipped in 2023.

Resources

Browse our library of inertial sensor literature papers for an in-depth view of our space sensors.

Customised Solution

InnaLabs® have the technology and resources to provide custom solutions to meet your project needs, with excellent pre and post-sale customer support.

Flexibility for Project Requirements

InnaLabs® dedicated and experienced engineers are committed to customer satisfaction by providing innovative technology, quality products, and custom solutions to meet your project needs. More questions? Evaluations and low volume deliveries are available quickly and our sales team are waiting to hear from you.

Submit RFI/RFQ

Similar Products

InnaLabs® offers a range of gyroscopes, accelerometers and systems based on the same design and production processes.
