Queen Forth Bridge

Structural Health Monitoring

InnaLabs® Inertial Sensors deliver industrial & tactical grade performance.

Newly Released Sensors

Our customer-focused engineering team can support you with an off the shelf robust sensor or support your development of a customised system. Take a look at our recently released inertial accelerometers.

AI-Q-21X0 Series Accelerometers

The continuous decline of civil infrastructures such as bridges, tunnels, dams and buildings could lead to disastrous failure, threatening public safety. For this reason, Structural Health Monitoring (SHM) of civil structures are used to assess, manage and allow for conditioned-based maintenance of civil structures thereby ensuring better management in wear or malfunction situations.  Through the use of SHM, inspections and operating costs are reduced, enabling a thorough understanding of the integrity of the structures while also providing seismic protection and real-time information. InnaLabs® innovative high-performance and reliable sensors make for the perfect solution to SHM. Our sensors enable data surrounding vibrations and stress to be collected from the structure facilitating reduced maintenance and thus cost savings, as well as increased longevity and improved safety of the structures and large machines.

Gyroscopes for Structural Health Monitoring & Early Warning

For assessing the structural integrity of Bridges, Tunnels, Dams, other formations and machines.

SHM_HBM

Copyright © Hottinger Baldwin Messtechnik GmbH

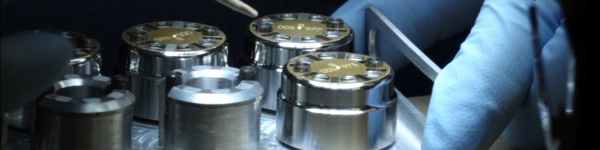

InnaLabs® has risen to the challenge by developing a low-cost CVG (Coriolis Vibratory Gyroscope) able to meet the market demand for low-cost accurate True-North-Finding and pointing systems. Although the InnaLabs® CVG has been developed primarily for stabilisation control systems and tactical grade systems, some specific refinements of the control loop electronics are leading to few 0.01 °/hr bias stability and ARW better than 0.01 °/√hr as required for 1 mrad accuracy.

Key Features
InnaLabs® CVG Gyroscopes are an excellent solution  on their own or assembled onto Inertial Measurement Units due to the following specifications:
  • Excellent Bias Stability (0.1 °/√hr)
  • Low Angular Random Walk (0.005 °/√hr)
  • Good Vibration sensitivity
  • Low Power consumption

Recommend Sensors

F-Series Gyroscopes

N-Series Gyroscopes

U-Series Gyroscopes

Accelerometers for Structural Health Monitoring & Early Warning

For assessing the structural integrity of Bridges, Tunnels, Dams and other formations and machines.

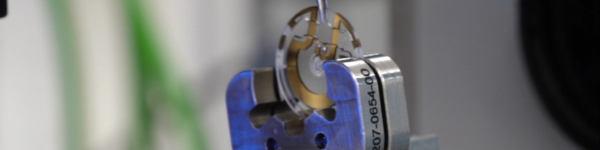

InnaLabs® AI-Q-21XX Series can provide tactical grade and navigation performance for SHM, due to its analogue voltage output, excellent long-term repeatability, and compact design.  The AI-Q-21XX Series is an optimal solution as it is also a form, fit and function replacement for other quartz servo accelerometers currently available on the market.

Key Features
InnaLabs® AI-Q-21XX Series are an excellent solution  due to the following specifications:
  • Good Bias (<8 mg)
  • High Input Range (±15 g)
  • High Stability under temperature changes (-55°C to +96°C)
  • High-reliability

Recommend Sensors

AI-Q-560 Accelerometer     AI-Q-2110 Accelerometer

AI-Q-2120 Accelerometer   AI-Q-2130 Accelerometer

Forth Rail Bridge in North Queensferry, Schottland

Our products are used in the Queensferry Crossing in Scotland.

Inertial Sensors

InnaLabs® CVG Gyroscopes and Quartz Servo Accelerometers are suitable for a wide range of Structural Health Monitoring.

Resources

Browse our library of inertial sensor datasheets and technical papers for an in-depth view of our inertial Sensors.

Customised Solution

InnaLabs® have the Engineering resources to provide custom solutions to meet your project needs, with excellent pre and post-sale customer support.

Flexibility for Project Requirements

InnaLabs® dedicated and experienced engineers are committed to customer satisfaction by providing innovative technology, quality products, and custom solutions to meet your project needs. More questions? Evaluations and low volume deliveries are available quickly and our product team are waiting to hear from you.
