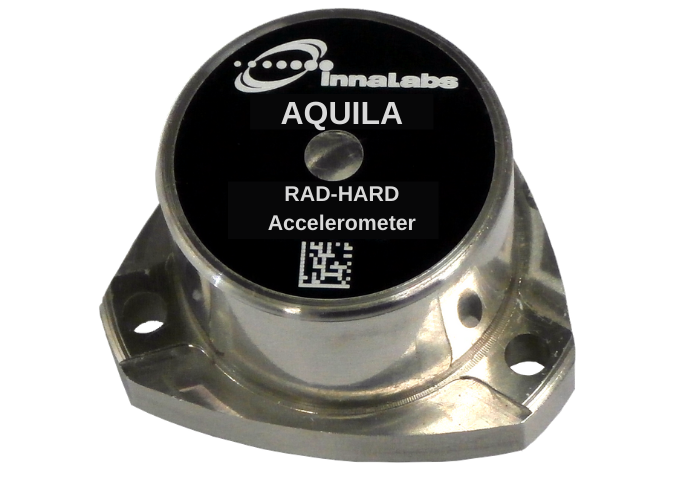

AQUILA

Rad-Hard Space Accelerometer

AQUILA









High-Performance Sensor

AQUILA is a rad-hard Delta Velocity Measurement Accelerometer based on InnaLabs® successful quartz pendulum accelerometer products and heritage. It measures the velocity change and transitions of satellites in orbit. The primary application of AQUILA is navigation and Fault Detection Isolation and Recovery (FDIR) on board satellites as well as for land, marine, and aerospace applications. AQUILA objective is to qualify a space-grade accelerometer that will withstand 30krad.



High-Performance Sensor

AQUILA is a rad-hard Delta Velocity Measurement Accelerometer based on InnaLabs® successful quartz pendulum accelerometer products and heritage. It measures the velocity change and transitions of satellites in orbit. The primary application of AQUILA is navigation and Fault Detection Isolation and Recovery (FDIR) on board satellites as well as for land, marine, and aerospace applications. AQUILA objective is to qualify a space-grade accelerometer that will withstand 30krad.



AQUILA

Specification

Additional product specifications, outline drawings and block diagrams, and test data are available on request.





Units

Values

Performance

Input Range g ±25
Bias mg ≤4
One-year Composite Repeatability  µg ≤80
Temperature Sensitivity µg/°C ≤15
Scale Factor mA/g 1.2 to 1.46
One-year stability (3-sigma) ppm ≤70
Temperature Sensitivity  ppm/°C ≤120
Axis Misalignment   µrad ≤2,000
One-year stability (3-sigma) µrad

≤80

Vibration Rectification  µg/g2 RMS

≤15 (DC-500 Hz)

≤40 (500 - 2,000 Hz)

Intrinsic Noise µg RMS ≤7 (0-10 Hz)
≤70 (10-500 Hz)
≤1,500 (500-10,000 Hz)
Environment
Operating Temperature °C -55 to +95
Shock survival (half-sine) g, ms 500 g @ 0.5ms
Vibration Peak Sine g, Hz 15g @ 20 to 2,000 Hz
Resolution/Threshold µg ≤1
Bandwidth  Hz

≥ 800

Temperature Model
  Yes
Electrical
Quiescent Current per Supply mA ≤36
Quiescent Power @±15VDC W ≤1.1
Input Voltage VDC ±13 to ±18
Physical
Weight  g 71. ±4
Diameter mm Ø 25.45 Max
Height  mm 14.85 Max
Case Material   300 Series Stainless Steel



Applications

A Rad-Hard navigation grade accelerometer meeting ESA ECSS standards for any space platforms.

Its main application is navigation and Fault Detection Isolation and Recovery (FDIR) onboard satellites as well as for land, marine, and aerospace applications.
