N-Series Gyroscopes

Tactical & Industrial grade performance



Availability

Lead time on the N-Series Gyroscopes are available for delivery in four weeks for quantities between the range of 5-20.

Get a Quote

High-Performance Gyroscopes

InnaLabs® N-Series Gyroscopes are a range of industrial and tactical grade gyroscopes which delivers less than <10°/hr over the full temperature range.  The high gain of piezoelectric elements delivers best in class noise performance. The control electronics operates in a closed-loop mode providing a high system bandwidth which is essential when operating in highly dynamic environments.

These gyroscopes can facilitate customised mounting solutions and, due to their high dynamic range, low noise and high MTBF, combined with the small size make this gyroscope family the ideal choice for platform stabilisation.

2 Axis N-Series Gyroscope

Y (2)

Principles of Operation

Solid-state Coriolis Vibrating Gyros are based on the control of standing waves in a physical body, called a resonator, which is housed within a protective case. The protective case which contains a resonator is called a Sensitive Element (SE), and there is one such SE per axis in all InnaLabs® CVG gyroscopes.

Y (3)

Key Features

-Cost-effective, solid-state design with the highest MTBF on the market.
-1 & 2 axis variants with selectable rate range options.
-Very low noise delivering robust solutions for stabilisation applications.
-Available in analogue & digital.

Y (6)

How to Order

The CVG N-Series Gyroscopes are available in 1-axis and 2-axis models, known as:
-GI-CVG-N1X00A/D
-GI-CVG-N2X00A/D
For quantities of two, lead time on the N-Series is available for delivery in four weeks.

Specification

Additional product specifications, outline drawings and block diagrams, and test data are available on request.





Dimensions Parameters

GI-CVG-N2x00A/D

GI-CVG-N1x00A/D

GI-CVG-N2103A1-a



Grade Tactical Industrial
Number of Axes 1 or 2
In-run Bias Stability (room temperature, 1σ), deg/hr <0.22 <0.22
Bias Stability (full temperature range, 1σ), deg/hr < 10 < 50
Scale factor error, full temperature range, 1σ < 3,500
Scale factor linearity ≤ 1500
Angular Random Walk, deg/√hr 0.01 typical
Electrical Interface
Bandwidth (-3dB) ≥ 300
Interface Analogue or Digital RS-422
Start-up Time 1 sec typical
Physical Specifications
Weight (each sensitive element) 71 g
Weight (each damper) 26 g
Weight (each electronics with connectors)

105 g (One-Axis)

115g (Two-Axis)

Dimensions, mm

H25 x D29.4

(Sensitive Element)

MTBF >500,000 hrs
Built-in Self Test
Yes





Applications

The InnaLabs® 2000 and 1000 N-Series Gyroscopes are applicable in many demanding applications.

-Platform Stabilisation

-Stabilisation Systems

-Commercial Ship Navigation/ Gyrocompass

-GPS Aiding for positioning systems in high-precision agriculture and mapping

-Stabilizations of survey instruments

-Flight control and navigation for Medium-to-Large UAV's

-Flight Control for Helicopters and Aircraft

Resources

Browse our library of inertial sensor technical papers for an in-depth view of our Coriolis Vibratory Gyroscopes.

Customised Solution

InnaLabs® have the Engineering resources to provide custom solutions to meet your project needs, with excellent pre and post-sale customer support.

Flexibility for Project Requirements

InnaLabs® dedicated and experienced engineers are committed to customer satisfaction by providing innovative technology, quality products, and custom solutions to meet your project needs. More questions? Evaluations and low volume deliveries are available quickly and our product team are waiting to hear from you.

Submit RFI/RFQ

Similar Products

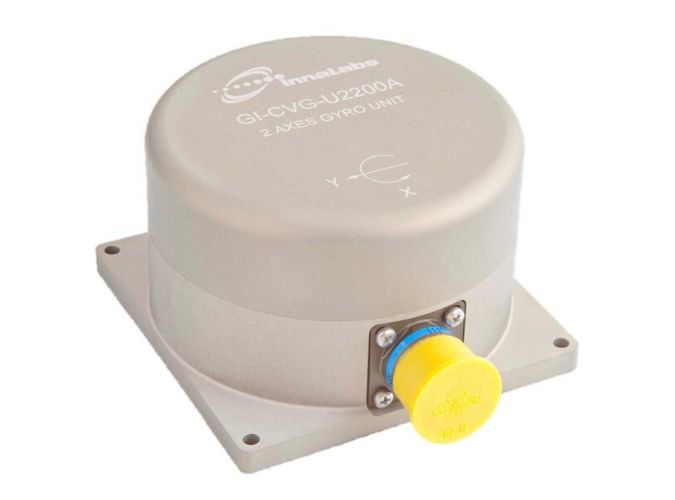

InnaLabs® Coriolis Vibratory Gyroscopes are available in various compact designs, packaged or unpackaged to support ease of integration and flexibility.
