E-Series Gyroscopes

Miniature & robust Gyroscopes.

Designed for use in harsh environments.

E-Series Gyro







Product Description

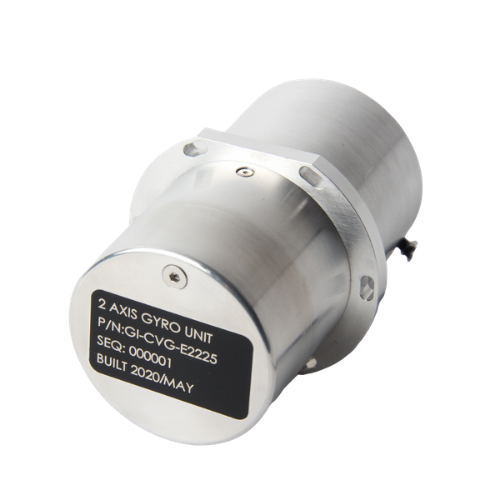

InnaLabs® E-Series Gyroscopes are high-performance, miniature, robust, and high-reliability Coriolis Gyroscope providing inertial angular rate measurement of rotations performed about 2 axis. The core technology used in the GI-CVG-E22XXD is InnaLabs® patented and proven Vibratory Gyros technology (CVG) which is inherently stable, impervious to ageing effects, naturally immune to vibrations and shocks, and low power consumption. It exhibits an unprecedented size (≤200 cm³) to Angular Random Walk (≤0.015 °/√hr) ratio, so long-awaited by customers operating in the stabilization market.

Product Description

InnaLabs® E-Series Gyroscopes are high-performance, miniature, robust, and high-reliability Coriolis Gyroscope providing inertial angular rate measurement of rotations performed about 2 axis. The core technology used in the GI-CVG-E22XXD is InnaLabs® patented and proven Vibratory Gyros technology (CVG) which is inherently stable, impervious to ageing effects, naturally immune to vibrations and shocks, and low power consumption. It exhibits an unprecedented size (≤200 cm³) to Angular Random Walk (≤0.015 °/√hr) ratio, so long-awaited by customers operating in the stabilization market. The E-Series Gyroscopes outperform FOG, DTG and Coriolis MEMS competitors in stabilization applications.

Specification

Additional product specifications, outline drawings and block diagrams, and test data are available on request.



Dimensions Performance





GI-CVG-E22XXD Schematics



Part Number GI-CVG-E22XXD
Number of Axis 2
Output Format  Digital
In-run Bias Stability ≤0.5°/hr (1σ) (typical 0.2°/hr)
Bias On/Off repeatability ≤0.3°/hr (1σ)
Angular Random Walk ≤ 0.015°√hr
Measurement Range ≤ ± 300 °/s
Electrical
Quiescent Noise ≤ 0.01°/s rms (100Hz)
Bandwith ≥300 Hz (-3db)
Start-up time ≤ 3s
Output format RS-422 Data Interface
Power Interface ± 5 VDC ± 5%
Environment
Temperature

-40°C to +85°C

Random Vibrations 3.63 g rms {5Hz, 2kHz}
Sine Vibrations 100g pk, ½ sine, 11 ms
Reliability  ≥ 500, 000 hr MTBF



Applications

The GI-CVG-E22XXD is applicable in many demanding applications.

-Platform Stabilisation

-Stabilisation Systems

-Commercial Ship Navigation/ Gyrocompass

-GPS Aiding for positioning systems in high-precision agriculture and mapping

-Stabilizations of survey instruments

-Flight control and navigation for Medium-to-Large UAV's

-Flight Control for Helicopters and Aircraft

Resources

Browse our library of inertial sensor technical papers for an in-depth view of our Coriolis Vibratory Gyroscope.

Customised Solution

InnaLabs® have the Engineering resources to provide custom solutions to meet your project needs, with excellent pre and post-sale customer support.

Flexibility for Project Requirements

InnaLabs® dedicated and experienced engineers are committed to customer satisfaction by providing innovative technology, quality products, and custom solutions to meet your project needs. More questions? Evaluations and low volume deliveries are available quickly and our product team are waiting to hear from you.
