AI-Q-710

Measurement Grade Accelerometer

Availability

Lead time on the AI-Q-710 is available for delivery in four weeks for quantities between the range of 5-20.

Get a Quote

High-Performing Accelerometer

The AI-Q-710 is a measurement grade accelerometer, built with Quartz Flexure technology. Due to its analogue voltage output and excellent long-term repeatability, the AI-Q-710 is an optimal solution for demanding Air, Land, and  Marine Applications.

Key Performance

  • Tactical grade performance.
  • Good Bias.
  • High input range.
  • High stability under temperature changes.
  • High reliability.
  • Internal temperature sensor for thermal compensation.
  • Compact, rugged design.

AI-Q-710(T)

Specification

Additional product specifications, outline drawings and block diagrams, and test data are available on request.





Units

Values

Performance

Input Range g ±30
Bias mg <8
One-year Composite Repeatability  µg <1200
Temperature Sensitivity µg/°C <70
Scale Factor mA/g 1.23 to 1.43
One-year Composite Repeatability ppm <1200
Temperature Sensitivity  ppm/°C <200
Axis Misalignment   µrad <2000
Vibration Rectification  µg/g2 RMS <50 (50-200 Hz)
<100 (200-750 Hz)
<150 (750-2000 Hz)
Intrinsic Noise µg RMS <7 (0-10 Hz)
<70 (10-500 Hz)
<1500 (500-10000 Hz)
Environment
Operating Temperature °C -55 to +96
Shock g 250
Vibration Peak Sine g, Hz 25g @ 20 to 2000 Hz
Resolution/Threshold µg <1
Bandwidth  Hz >300
Temperature Model
  Yes
Electrical
Quiescent Current per Supply mA <16
Quiescent Power @±15VDC mW <480
Input Voltage VDC ±13 to ±28
Physical
Weight  g 53 ± 2
Diameter below mounting surface mm Ø 25.45 Max
Height – bottom to mounting surface mm 14.2 Max
Case Material
300 Series Stainless Steel





 *The AI-Q-810 is the commercial alternative with a limited measurement range of ±15g

Applications

The AI-Q-710 is ideal for a wide range of applications. The AI-Q-810 is an alternative with a limited measurement range of ±15g.

-Automotive test instrumentation.
-Braking system deceleration.
-Bridge and building sway and tilt monitoring.
-Industrial and robotic control.
-Land vehicle navigation.
-Subway and train ride comfort control.
-Offshore drilling platform motion monitoring.

Resources

Browse our library of inertial sensor technical papers for an in-depth view of our  Quartz Pendulous Accelerometers.

Customised Solution

InnaLabs® have the Engineering resources to provide custom solutions to meet your project needs, with excellent pre and post-sale customer support.

Flexibility for Project Requirements

InnaLabs® dedicated and experienced engineers are committed to customer satisfaction by providing innovative technology, quality products, and custom solutions to meet your project needs. More questions? Evaluations and low volume deliveries are available quickly and our product team are waiting to hear from you.

Contact Us

Similar Products

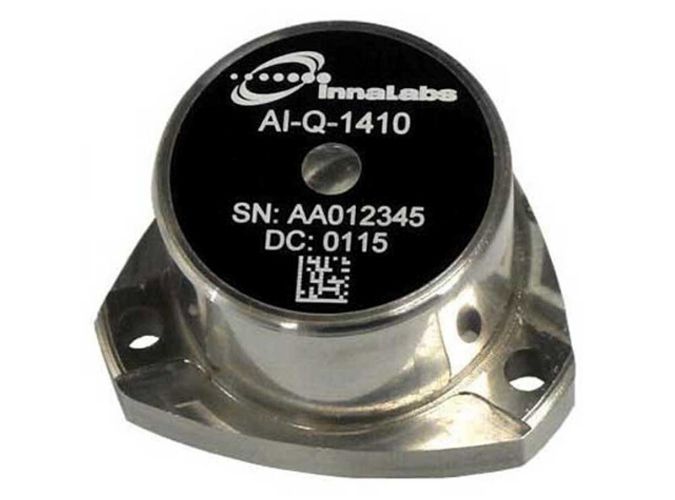

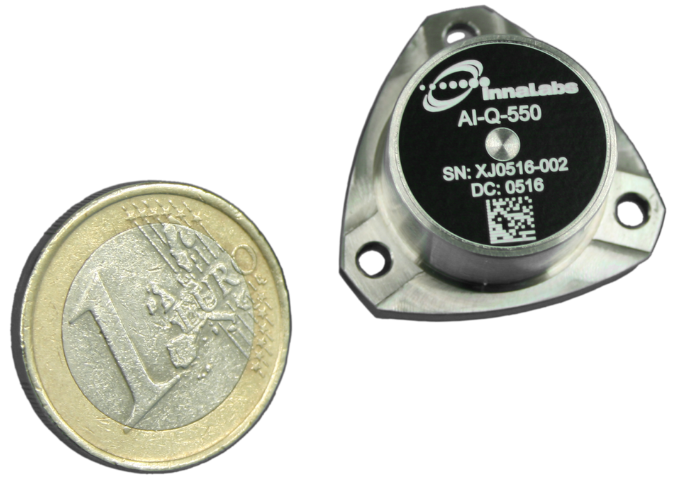

InnaLabs® offers a range of accelerometers based on the same design and production processes, including the AI-Q-1410, AI-Q-550 and AI-Q-20X0 families.
