Drilling

CVG-HT

Miniature, Robust & High-Reliable Gyroscope

Availability

Please contact our Sales Team for information on product availability.

Get a Quote

Miniature Gyroscope

CVG-HT is a high-performance, miniature, robust, and high- reliability Coriolis Gyroscope. Designed to provide inertial angular rate measurement rotations about 1 reference axis, CVG-HT is a market-leading inertial sensor for downhole applications, including North seeking gyroscopic systems. Due to its 185°C operating temperature range and its very low Angular Random Walk parameter, the CVG-HT is unmatched by any other product available on the market.

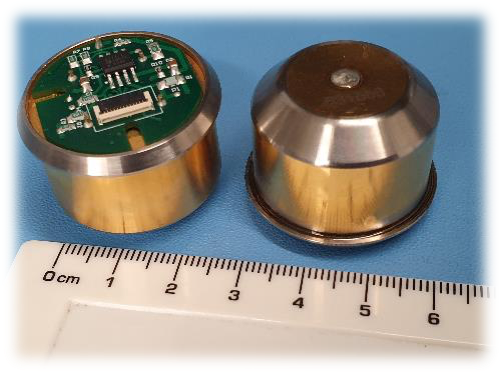

CVG-HT


Specification

Additional product specifications, outline drawings and block diagrams, and test data are available on request.



CVG-HT Dimensions (mm) Performance
cvg_ht_shematicscvg_ht_2



Number of axis

1 axis angular measurement

Bias In-Run

At 185°C, over 3 min: ≤ 0.2° /hr (1σ)

At 125°C, over 3 min: ≤ 0.1° /hr (1σ)

Measurement Range

Fine Mode Measurement Range

 ≤ ±20 ° /s (typical)

Course Mode Measurement Range

≤ ±80 ° /s (typical)

Angular Random Walk

≤0.005 °/√hr (typical)

Electrical

Customised Dataface

 RS422 or Analogue

Customised Power Interface

(+VDC nominal)

Switch-on response time

≤ 1s

Warm up time

≤ 5 min

Environment

Operating Temperature

 -40°C to +185°

Bandwidth

≥ 15 Hz

Reliability (sensing element)

≥ 500,000 (MTBF)

Physical

Volume

≤34 mm (Diameter) x 26.2mm (Height)

Power Consumption

≤ 3 W

Weight

≤ 61 gr





Applications

The CVG-HT is a mechanical gyroscope and can be used for many applications within the Oil, Gas, Mining Survey Drilling Market.

-Guidance of borehole survey instruments

-Navigation for drilling heads

-Pipeline inspection systems

-Finding North in mining, oil, and gas exploration





Resources

View our  CVG-HT Datasheet or contact us for more information.
